Standard 180 KN

Standard 180 KN
Standard 180 KN
Product Code : 23
Product Description
Standard 180 KN

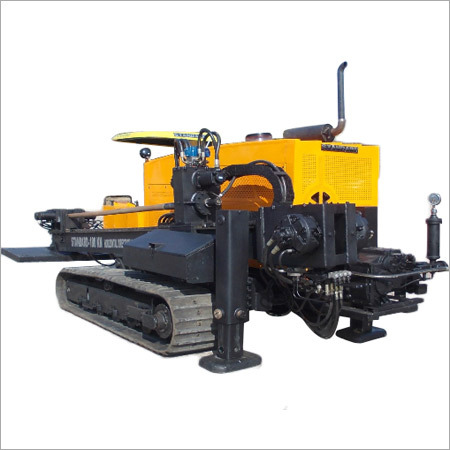

Standard corporation India limited made the first ever Indian made horizontal directional drilling machine. This machine adopts the high intensity rubber track chassis and all in one structure of power station and driller in order to be convenient for movement and raise flexibility. The power is provided by KIRLOSKAR diesel engine. The rotary drive by INI motors giving steady and large torque. Easy operation of all hydraulic drives and central control from the control panel.

SPECIFICATIONS
180KN
KIRLOSKAR Air cooled engine
81Kw
Max. Spindle Torque
6000Nm
Max. Pullback Force
180Kn
Max. Thrust Force
180Kn
Spindle speed
0-100rpm
Entry Drill Angle
8-20
Max Mud Flow Rate
250lpm
Max. Fluid Pressure
8mpa
Drill Rod
60 x 3000mm
Dia. of Barrel reamer
180-680mm
Dia. of winged reamer
320-630mm
Dia. of fluted channel reamer
300-700mm
Rig Size
5500 x 2170 x 2100mm
Weight
7700kg
